Find the product
adapted to your project

To suit all architectural styles, we offer a complete range of surface aspects ranging from matte to shiny, achievable on different shades of stainless steel. The stainless steel shade and the surface appearance should be distinguished.

  • A stainless steel shade is characterized by its chemical composition. The latter has a direct influence on corrosion resistance and mechanical properties
  • Surface aspects are the result of mechanical or physical-chemical treatments of the surface. The same look can be achieved for different shades of stainless steel.

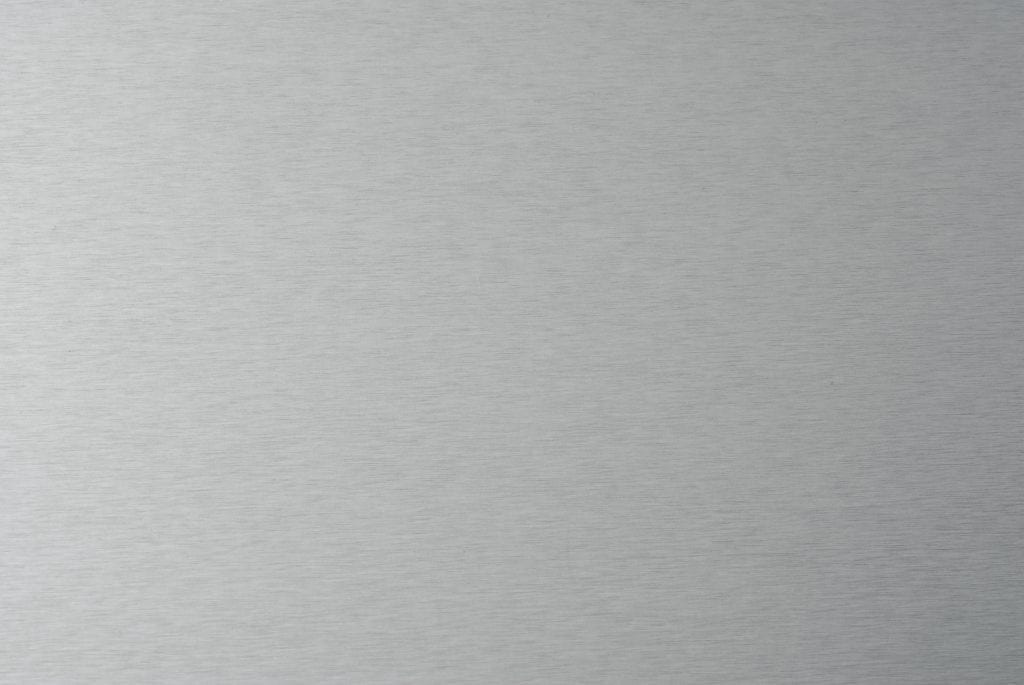

Uginox Patina

UGINOX Patina is available on bi-stabilized ferritic stainless steel with an electro-tinned coating on both sides.
UGINOX Patina is available in K41 (contains 18% chromium and is stabilized with titanium and niobium) and K44 (contains 18% chromium and molybdenum and is stabilized with titanium and niobium).

UGINOX Patina weathers over time, acquiring a matt finish through natural patination, giving it a traditional rustic final appearance.
UGINOX Patina K41 / K44 have the benefit of  being highly resistant to corrosion resistance, making it suitable for use in aggressive atmospheres.

Finish: Mat
Applications : Roofing, Sculpture

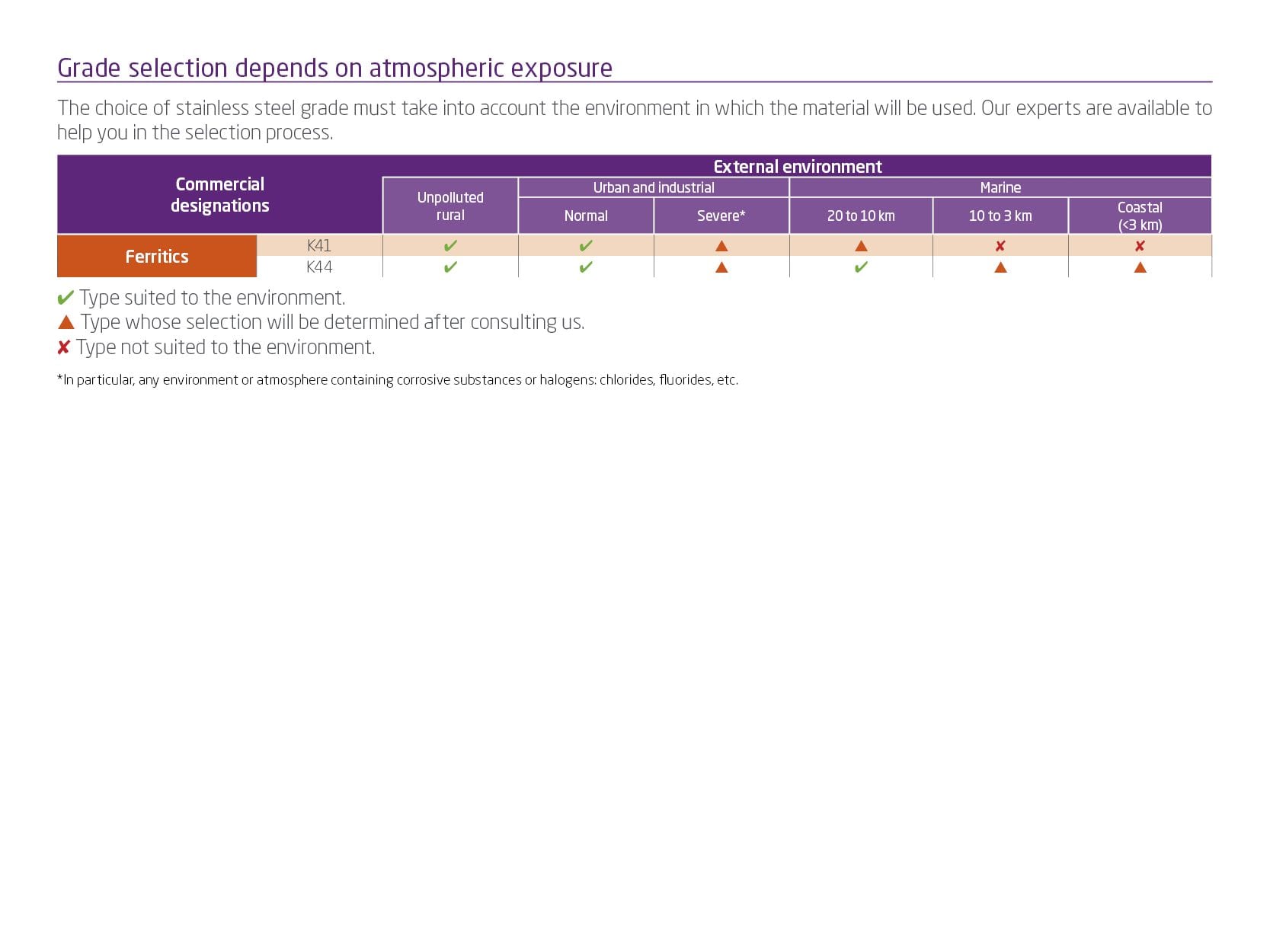

Grade: K41, K44 (Please use the table to check a grade’s compatibility with specific environmental conditions)
Environment: voir le tableau
Others:

Uginox Top

Uginox Top is a double sided matt finish (surface roughness Ra typical: 1.5 μm / 60 μinch).
This finish is available on 304/304L austenitic grades (1.4301/1.4307) and 316L (1.4404). (Please refer to our dimensional range).
We propose a standard width range up to 1250 mm and further widths up to 1500 mm are available on consultation.
>The surface conforms to the norm EN 10088 2M
norm.

Finish: Mat
Applications : Facade, Roofing, Internal decoration
Grade: 304, 304L (Please use the table to check a grade’s compatibility with specific environmental conditions)
Environment: voir le tableau
Others:

Uginox Mat

Uginox Mat is dull, uniform with low surface roughness, which enables the accomplishment of very elegant, aesthetic projects. This surface finish lends itself to the building market at all levels, from facade to roofing including street furniture.

Uginox Mat is available in different grades: both austenitic grades 304/304L (1.4301/1.4307) and 316L (1.4404), and on duplex grades DX2205 (1.4462) et DX2304 (1.4362).

We propose thicknesses from 0.4 mm up to 2 mm on austenitic grades (please consult us for Uginox Mat on duplex).

Finish: Mat
Applications : Roofing, Facade, Internal decoration

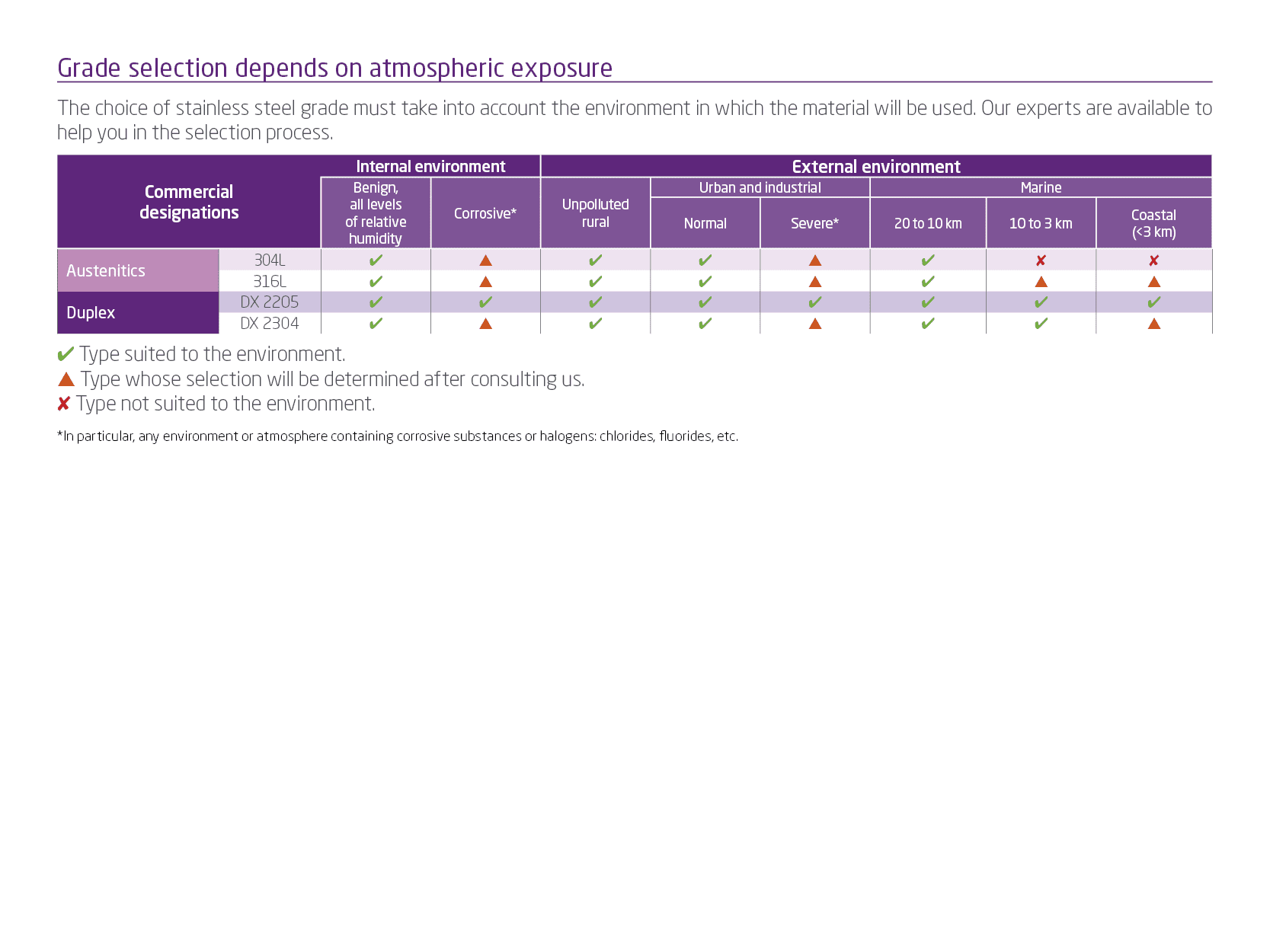

Grade: 304/304L – 316 – DX2205 – DX2304 (Please use the table to check a grade’s compatibility with specific environmental condition)
Environment: voir le tableau
Others:

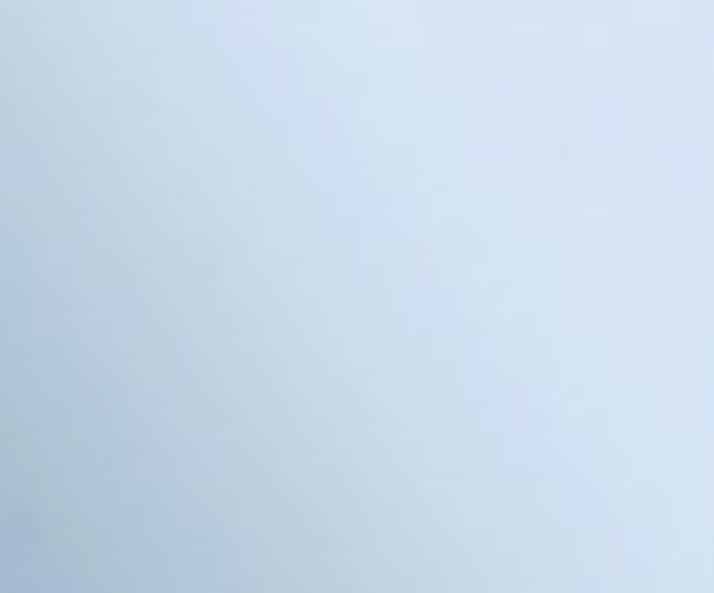

Uginox Bright

Uginox Bright is a surface finish characterized by a particularly bright and uniform surface with low roughness, making it ideal for dramatic, aesthetic projects.This level of brightness and uniformity are obtained using a final annealing process specially developed for applications such as the building envelope.In this case, Uginox Bright allows the building to “live” over time.This finish is available in austenitic grades 304 / 304L (1.4301 / 1.4307) and 316L (1.4404). Please contact us for Uginox Bright in K36 (1.4526).We offer thicknesses between 0.4 mm and 2 mm and widths up to 1250 mm (contact us for width 1500 mm).

Finish: Bright
Applications : Roofing, Facade, Sculpture, Internal decoration
Grade: 304, 304L (Please use the table to check a grade’s compatibility with specific environmental condition)
Environment: voir le tableau
Others:

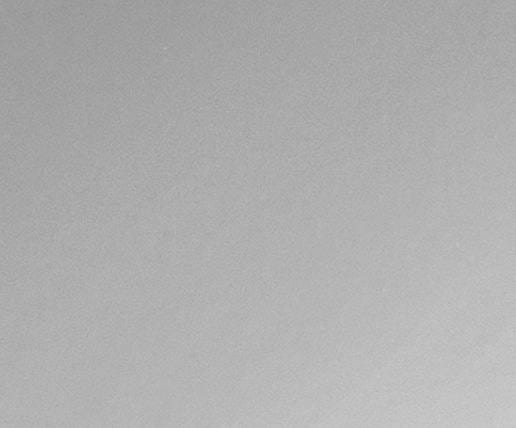

Uginox Méca

The mirror polishing can be done on stainless steel sheets. A reflective aspect will be obtained regardless of the raw aspect (BA, 2B, 2D or 1D).

We offer three quality levels:

UGINOX Méca 8ND: non-directional nr 8 mirror polishing (super mirror) without any trace of polishing.

UGINOX Méca 7D: directional nr 7 mirror polishing. The surface is perfectly reflective, offering a sharp reflective image.

UGINOX Méca Brill: light brightening of the surface. The final aspect depends mainly on the quality of the initial surface.

Finish: Bright
Applications : Facade, Roofing, Internal decoration, Sculpture

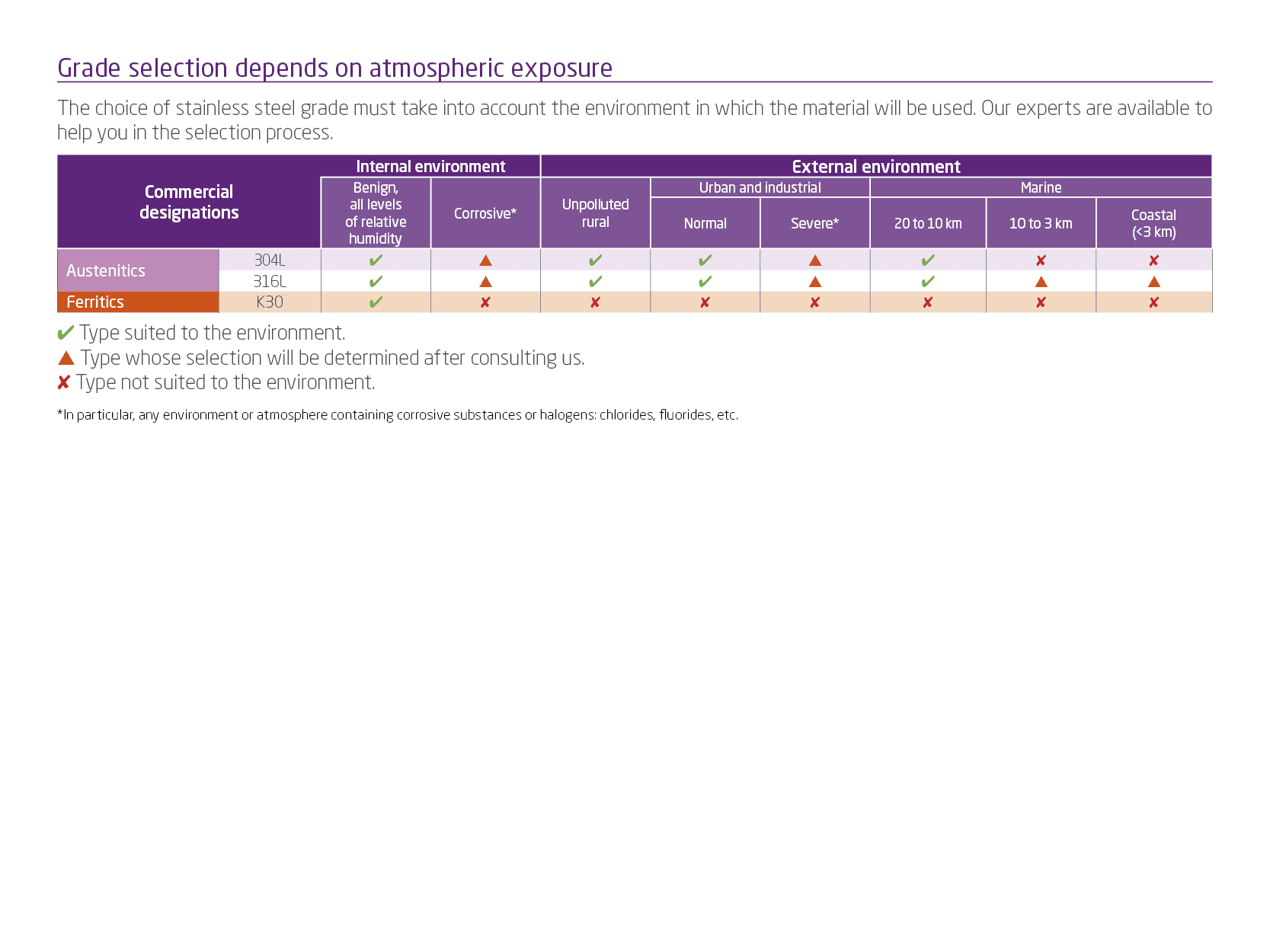

Grade: 304L (Please use the table to check a grade’s compatibility with specific environmental condition)
Environment: voir le tableau
Others:
